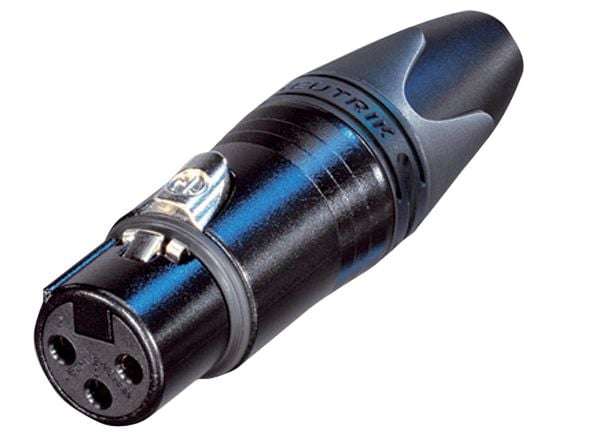

3 pole female XLR cable connector.

Black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

TECHNICAL DATA

Product

• Connector: Type XLR

• Gender: female

Electrical

• Capacitance between contacts: ≤ 4 pF

• Contact resistance: ≤ 3 mΩ

• Dielectric strength: 1,5 kVdc

• Insulation resistance: > 2 GΩ (initial)

• Insulation resistance: > 1 GΩ (after damp heat test)

• Rated current per contact: 16 A

• Rated voltage: 50 V

Mechanical

• Cable O.D.: 3.5 - 8.0 mm

• Insertion force: ≤ 20 N

• Withdrawal force: ≤ 20 N

• Lifetime: > 1000 mating cycles

• Wire size: max. 2.5 mm²

• Wire size: max. 14 AWG

• Wiring: Solder contacts

• Locking device: Latch lock

Material

• Boot: Polyuretan

• Bushing: Polyamide (PA 6 15% GR)

• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni

• Contacts: Bronze (CuSn8)

• Insert: Polyamide (PA 6.6 30 % GR)

• Locking element: Zinc diecast (ZnAl4Cu1)

• Shell: Zinc diecast (ZnAl4Cu1)

• Shell plating: Black chromium

• Strain relief: Polyacetal (POM)

Environmental • Temperature range: -30 °C to +80 °C

• Flammability: UL 94 HB

• Standard compliance: IEC 61076-2-103

• Protection: class IP 40

• Solderability: Complies with IEC 68-2-20
