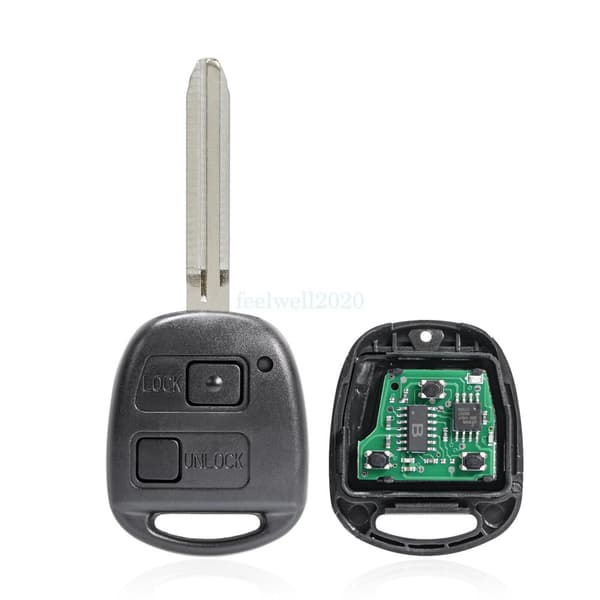

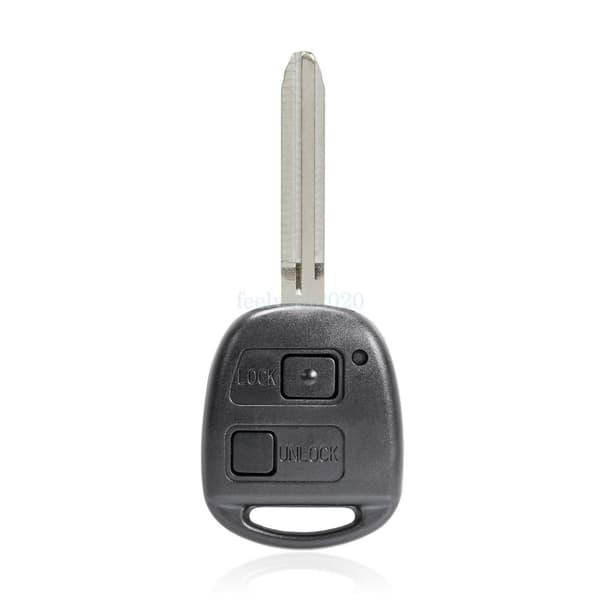

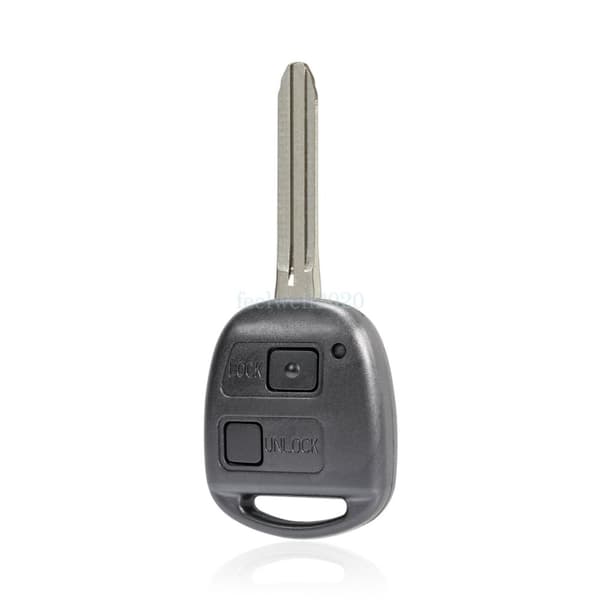

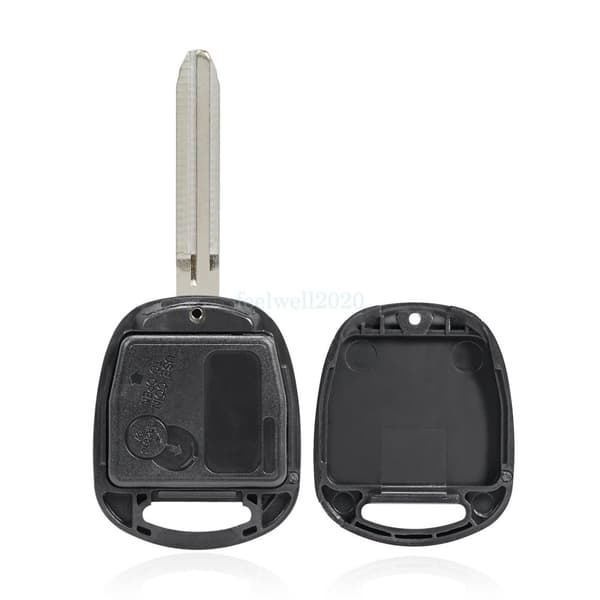

2 Button 433Mhz Remote key Fob for Toyota RAV4 2003 2004 2005 P/N: 50171+ Chip

Name: 2 Button 433Mhz Remote key Fob for Toyota RAV4 2003 2004 2005 P/N: 50171+ Chip
Brand: Mediatronixs
SKU: keyfob-1358
Price: 43.79 EUR
Availability: InStock

43,79 €

Varastossa

Pe, 31 tammi - to, 6 helmi

Turvallinen maksu

14 päivää avoin osto

Myyjä ja toimittaja

AK Prints

Specification: Type: Remote Key fob Frequency: 433Mhz Color: Black Materials: ABS Plastic Metal Button: 2 Buttons Blade: TOY43 (Uncut,need to be cut by locksmith) Chip: 4D67 Chip Part number : 50171 or 42050 Battery/ Transponder chip/ electronic: yes Quantity: 1 pcs

Fitment: - Fit for Toyota - Fit for RAV4: 7/2003 to 11/2005 - Fit for Prado 120: 9/2004 to 8/2009 - Fit for Tarago: 4/2003 to 1/2006 - Fit for Kluger: 8/2003 to 5/2007 - Fit for Avensis: 10/2003 to 2010

Package Include: 1 x Remote Key

Note: 1.Pls make sure your current key/remote looks identical to the product pictured in the main image before purchasing 2.Pls make sure your current key is with same frequency ,chip and Part number information 3.The key blade needs to be cut at local dealer or a locksmith. 4. This remote must be programmed by an automotive or dealership, there is no way to program yourself.

Remote part programming: STEP1. Open Driver side door STEP 2. Put the Original key in and out of ignition for 2 times STEP 3. Close and open driver door for 2 times STEP 4. Original Key in and out for once STEP 5. Shut and open door for twice STEP 6. Close door STEP 7. Put Original Key in the ignition and Turn ignition on STEP 8. Turn ignition off and remove key STEP 9. Door locks will cycle STEP 10. Do the following for all remotes:Press lock and unlock together for 1s, then press the lock button STEP 11. Locks will cycle put key in ignition turn to on then off STEP 12. Remove key from ignition, close door and test remote

To Delete All Remotes from the Vehicle:

At Step 7, turn the key on and off for 5 times then remove key, door locks will cycle for 5 times. Turn the key on then off. Open shut door. All remotes that were coded into the car, have now been removed.

Program keys:

STEP 1. Put Original master key in and out of ignition for 5 times. Finish with key in ignition (in, out, in, out, in, out, in, out, in) STEP 2. Open and shut door for 6 times STEP 3. Remove original key and insert the new key (Do not turn the key, just insert it into the ignition STEP 4. Leave for 60s (or til light goes out) STEP 5. After 60s security light stops flashing then you can start car. STEP 6. Take key out STEP 7. Open and shut door

If you make a mistake at any point in the procedure, use original key to start the car. Take the key out, open and close door.

Now you are ready to start again.
