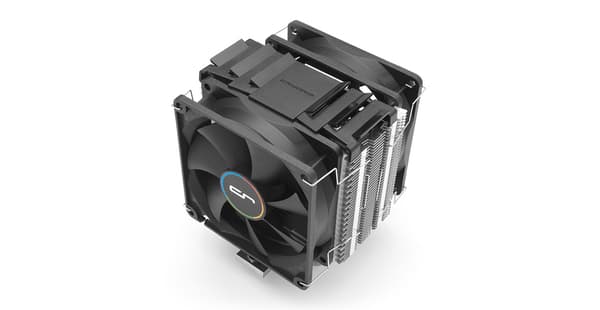

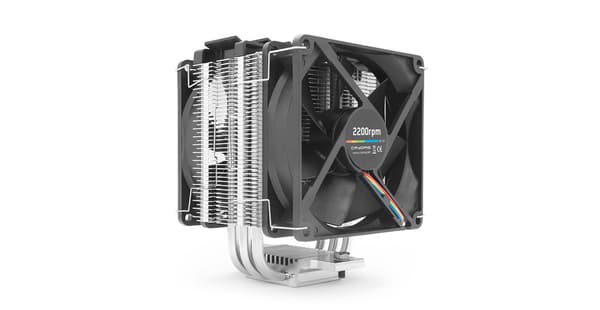

H7 PLUS. The Dual Fan Enhanced Performance Tower.



Direct Air Tunnel Effect, Aligned System Airflow



By adding one additional fan the full fan system aligns with your system fan, to concentrate and expel exhaust heat.



This increases the overall efficiency of the whole system airflow.





Heatsink Specification

Dimension ( with fan ): L126 mm x W123 mm x H145 mm

Weight ( with fan ): 845 g

Weight ( without fan ): 577 g

Heat pipes: 6mm heatpipe x 3 units

Fin: T = 0.4 mm ; Gap = 2.2 mm

Fin Pcs: 40 pcs

Copper Base: C1100 Pure copper nickel plated

RAM Height Limit: Limitless

TDP: 150 W



Fan Specification

Model: QF120 Black Balance

Dimension: L120 mm x W120 mm x H25.4 mm

Weight: 134 g

Rated Speed: 300 ~ 1600 RPM ±10 %

Noise Level: 25 dBA

Air Flow: 59 CFM

Air Pressure: 1.65 mmH2O

Ampere: 0.16 A



Motherboard Compatibility

1150, 1151, 1155, 1156

FM1, FM2/+, AM2/+, AM3/+, AM4
