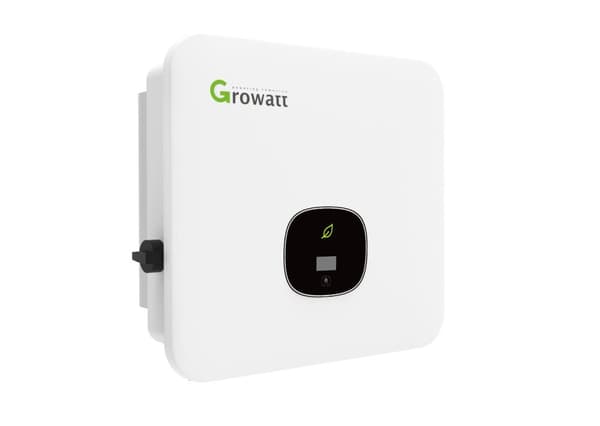

With the help of the Growatt Hybrid inverter 6 kW MOD 6 KTL3-XH, you can produce your own power. It is more and more valuable, especially in these times when energy prices are skyrocketing. Growatt Hybrid Inverter 6 kW MOD 6 KTL3-XH is the hub itself and is a Hybrid Inverter compatible with PV systems up to 12000Wp. The hybrid inverter is intended for storing power in batteries. However: the batteries can be ordered separately and are not supplied as standard. Thanks to this practical system, the PV system is not dependent on the electricity grid and can work by itself. However, the system also works without a battery and it is also perfectly possible to connect to the mains. The battery inverter contains 2 MPPTs so that a total of 2 separate strings can be connected

Quiet inverter

The Growatt Hybrid Inverter 6 kW MOD 6 KTL3-XH inverter contains no fan and transformer, making it very quiet. This makes the hybrid inverter ideal for residential installations. The inverter uses natural cooling, which gives it an extra long life.

Return

Growatt Hybrid inverter 6 kW MOD 6 KTL3-XH has a maximum efficiency of 98.3%. This allows the inverter to achieve maximum energy yield.

Growatt online service

The inverter contains stable monitoring means such as LAN or WiFi. Growatt offers a smart online service to remotely check technical issues and updates in case you get stuck. This improves the ease of use and efficiency of the inverter. These features and services make the inverter a better choice for your PV system yes we almost dare say: the best choice

Growatt inverters are among the best selling inverters in the world, we understand why.

Preferences

Max. recommended PV power (for module STC): 12000W

Max. DC voltage: 1100V

Starting voltage: 160V

Normal voltage: 600V

MPP voltage range: 140v – 1000V

Number of MPP trackers/strings per MPP tracker: 2/1

Max. input current per MPP tracker: 16A

Max. short circuit current per MPP trackers: 20A

Input (DC Battery)

Compatible battery: ARK XH Battery System (7.68 kWh – 25.6 kWh) or equivalent from other manufacturers

Operating voltage range: 600-950V

Max. operating current: 11A

Max. charging power: 6000W

Max. discharge power: 6600VA

Output (AC)

AC rated power: 6000W

Max. AC apparent power: 6600VA

Nominal AC voltage (range*) 220V -380V, 230/400V (340-440V)

AC mains frequency (range*) 50/60 Hz (45-55Hz/ 55-65Hz)

Max. output current: 10.0A

Adjustable power factor: 0.8leading…0.8lagging

THDi: <3%

AC mains connection type: 3W+N+PE

AC mains frequency: 50/60Hz

Efficiency

Max efficiency: 98.3%

European efficiency: 97.5%

MPPT efficiency: 99.9%

Protection system

DC reverse polarity protection: Yes

DC switch: Yes

DC/AC surge protection: Type 2/Type 2

Insulation resistance monitoring: Yes

AC Short Circuit Protection: Yes

Ground fault monitoring: Yes

Network monitoring: Yes

Protection against islanding: Yes

Fault current monitoring device: Yes

AFCI protection: Yes

General information

Dimensions (W/H/D) 425 x 387 x 147 mm

Weight: 12.5 Kg

Operating temperature best function: -25 to +60 degrees Celsius

Tested to altitude: 4000 meters

Self-consumption at night: <5.5W

Topology: transformerless

Cooling: Naturally air cooled

Degree of protection: IP66

Relative humidity: 0% to 100%

DC connection: H4/MC4 (selectable)

AC connection: Plug

Display: OLED + LED/WIFI + APP

Interface: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN: Yes/Yes/Selectable/Selectable/Selectable/Selectable

Warranty: 10 years

The AC voltage range and frequency range may vary depending on the specific national grid standard. All specifications are subject to change without notice.

Article number: 101213
