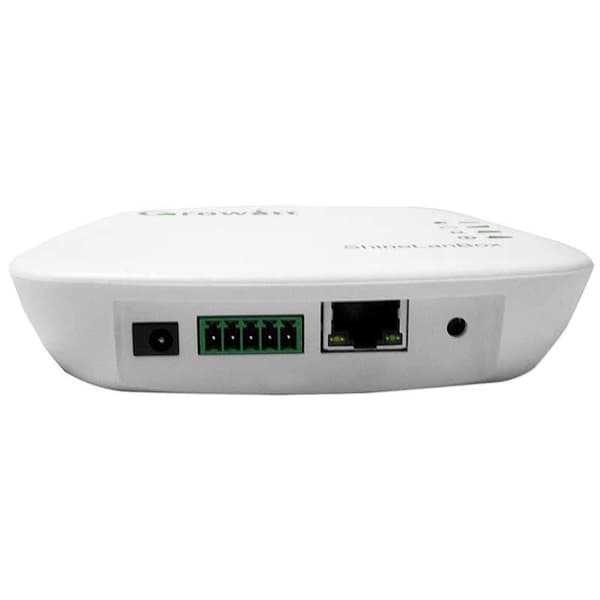

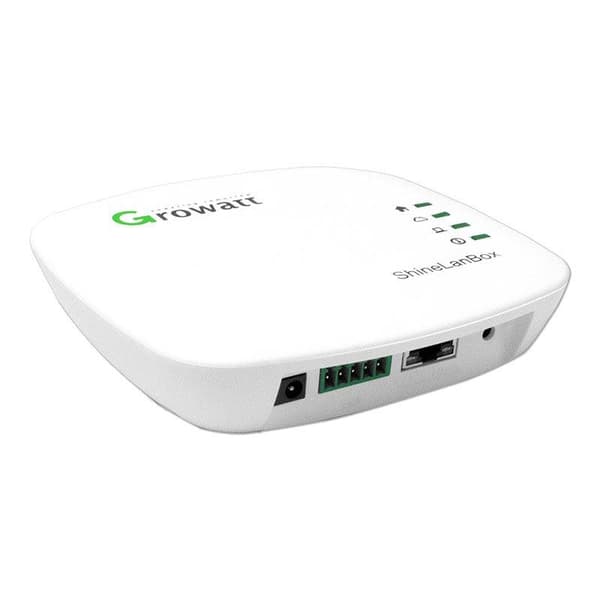

ShineLinkBox is a smart and simple installation monitoring solution. Together, Growatt Shine sticks LAN or Wireless form the ShineLink Wireless Monitoring Kit, which is the new generation monitoring solution for on-grid and off-grid inverters. With it, you can easily check how your solar cell system delivers and behaves. Unique wireless communication makes installation more convenient and flexible.

KEY FEATURES:

Easy installation, plug-and-play

Automatic IP addressing

Data archiving for 30 days even during internet interruptions

Monitoring of up to 8 inverters via RF433

120 meter long range, wide coverage

Online monitoring and maintenance

Graphical user interface, Android/IOS APP

Warranty 1 year

Data sheet ShineLink-X

Communication interface

RF433: Yes

RF433 (two walls block): 20 meters

RF433(No barrier wall) Up to 120 meters

Power supply

Power consumption: <2W standby, <5W peak

Voltage range: 196V~250V

Frequency: 50/60Hz

General specifications

Dimensions (L/W/H): 105/85/26 mm

Weight: < 1 kg

Mounting options: Table placement/wall mount

Degree of protection: IP30

Monitoring: LED display

Ambient temperature range: -20 to 65 °C

Humidity: 0-95% (non-condensing)

Functions

Max. number of devices to monitor: 8 (RF433)

Remote firmware upgrade: yes

Warranty: 1 year

Article number: 101100
