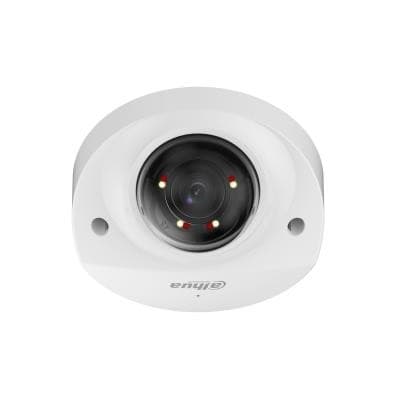

IPC-HDBW2449F-AS-IL
4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

>4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 and IK10 protection.
>SMD Plus.

Type Fixed/Outdoor
Pixel Resolution 4 Mega Pixel
Focal Length 2.8 mm; 3.6 mm
IR Illumination
Sensor size 1/2.9" CMOS
Microphone Built-in
Lens Mount M12
Min. Illumination 0.006 Lux
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
1xAudio-In
1xAudio-Out
1xRJ45
1xAlarm In
1xAlarm Out
Power options PoE/12V
Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Operating temperature range –40 °C to +60 °C
Dimensions 55.0 mm × Φ108.9 mm
