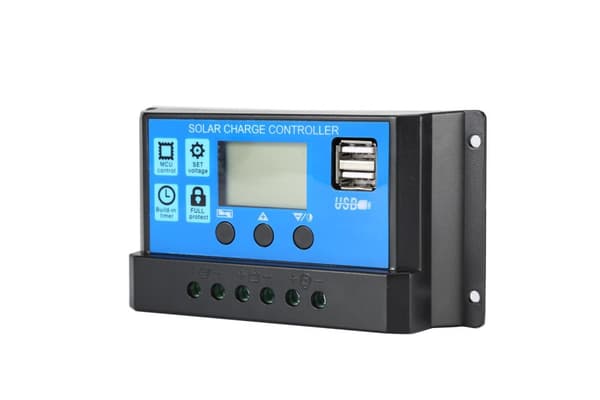

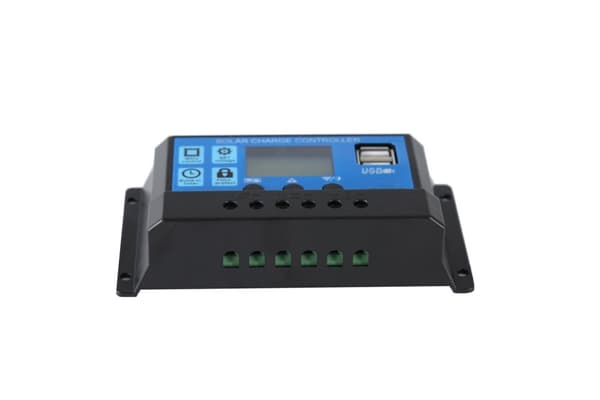

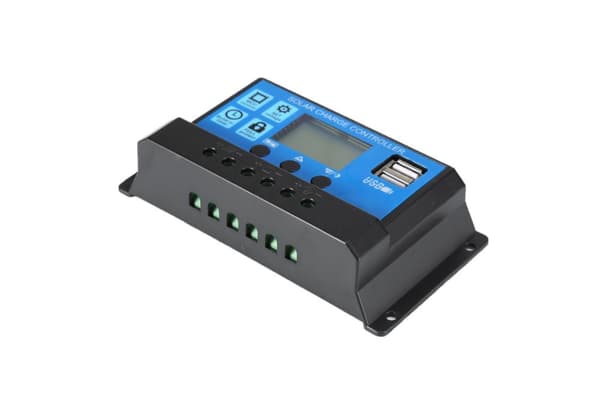

The NOVA YJSS Charging Generator is the very heart and brain of your solar system for boats, cars, caravans and mobile homes! According to the manufacturer, it is the most cost-effective regulator on the market. The fact that it is small and flexible and with lots of smart control functions doesn't make matters worse, does it?

Five quick benefits

1-Wide compatibility: The solar charger controller is automatically compatible with 12V or 24V systems, suitable for lead acid batteries. Dual USB 5V output ports support mobile phones, tablets or other devices that require 5V voltage.

2-Reliable protection: Solar charge controller provides overcurrent protection, short circuit protection, reverse protection, low voltage and overcharge protection, a reliable protection for your devices.

3-Intelligent controller: Built-in industrial microcontroller for automatic management and memorization of various parameters set by the user so that data will not be lost when the battery runs out.

4-Digital LCD screen: Intuitive LCD screen that can clearly indicate status and data, you can easily change modes and aprameter configuration, suitable for home, industry, commercial, etc.

5-Easy to use: The charge controller should connect the battery first, then the solar panel and finally load! You can easily change the settings with a simple button press.

Feature

A charge controller like this limited rate at which electrical current is added or subtracted from the battery. It prevents overcharging and can prevent against overvoltage. Overvoltage can reduce battery performance and life.

Indication information

Charge control, workstation control, solar cell control, lamp control, voltage control solar plant control

Technical specifications:

Model: YJSS10A

Maximum solar input power: 240/480/720 W

Maximum solar panel open circuit voltage: 55/55/55 VDC

Maximum short-circuit current of the solar panel: 55 V

Maximum solar panel short circuit fuse: 10 A

Maximum battery charge fuse: 10 A

Maximum output load fuse: 10 A

Self-consumption: ? 500 mA

System voltage: 12V/24V AUTO

Maintenance charge: 13.7/27.4V

Forced Charge: 5/14/29

Charging mode: PWM

Size: 13.4 x 6.8 x 2.4 cm

Weight: 0.15 kg

Article number: 99504
