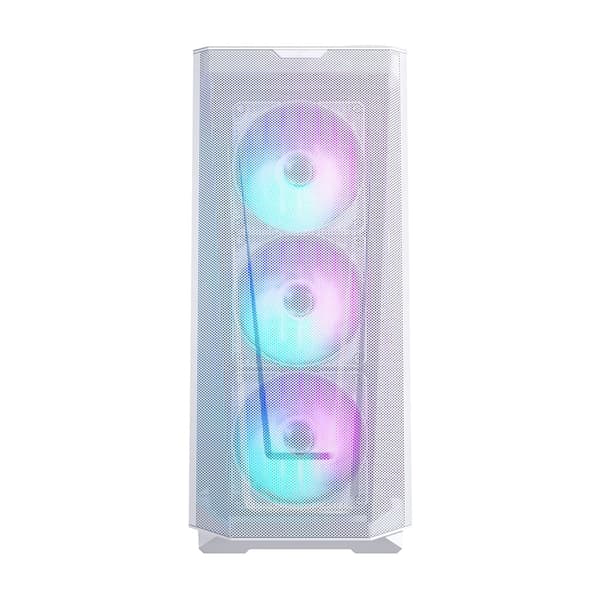

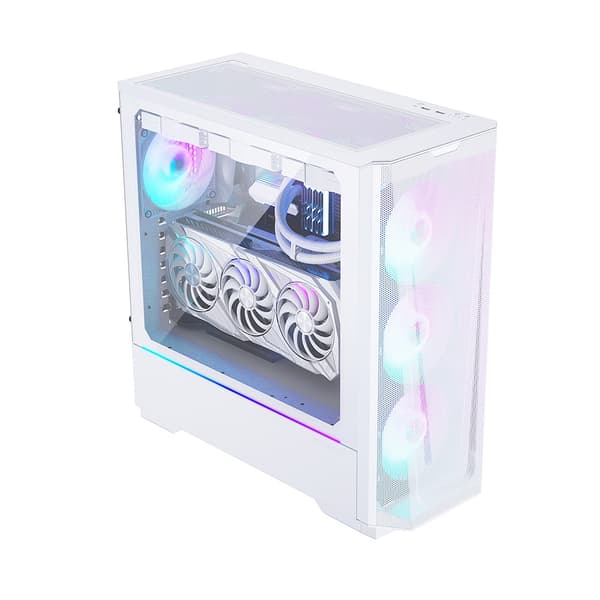

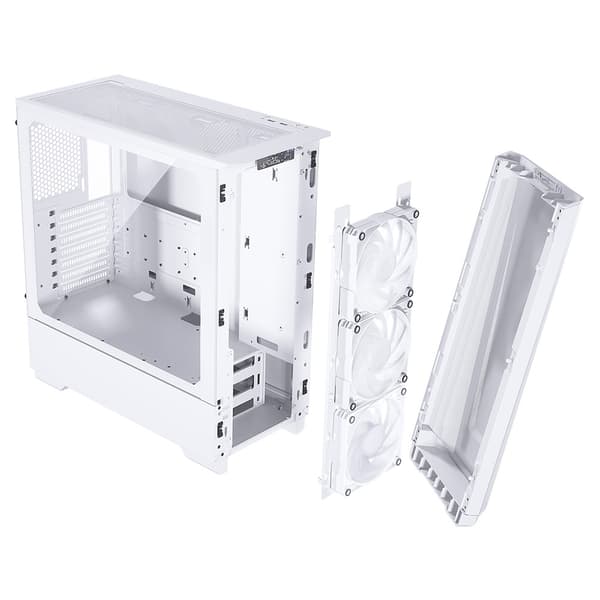

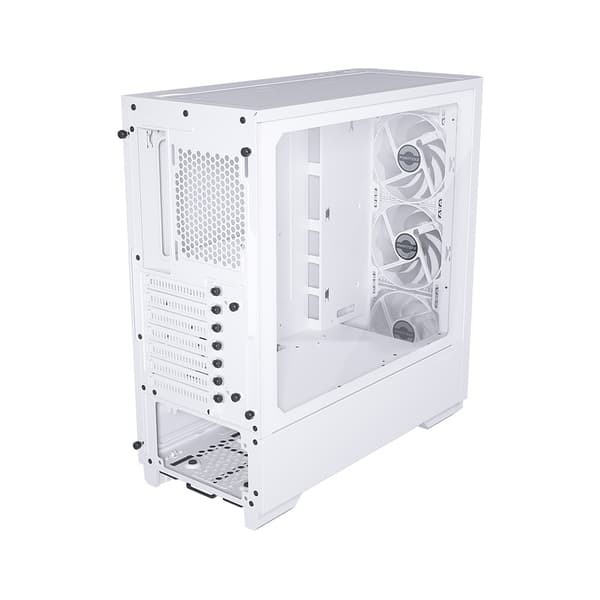

The Eclipse G360A is designed with exceptional fan and radiator options to meet the cooling demands of modern hardware. The metal front panel features Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with dust filtration, an all-in-one. With its high-performance design, the G360A is ready for powerful gaming setups, offering 360 radiator options on the top and front while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and it is ready for vertical GPU mounting.

Case Dimension (DxWxH): 455 x 200 x 465 mm

Form Factor: Mid Tower

Materials: Steel Chassis, Tempered Glass

Motherboard Support: ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)

Front IO: 2x USB 3.0 D-RGB Color button D-RGB Mode button Power button Microphone/headphone

Connectors: Power Switch USB 3.0 HD-Audio D-RGB expansion D-RGB third-party D-RGB Motherboard SATA Power

Side Panels: Tempered Glass

PCI Slots: 7

Internal 3.5” bay: 2 (2x included)

Internal 2.5” bay: 3 (2x included)

Vertical GPU support: Yes, with optional bracket PH-VGPUKT4.0_03

Front Fan: 3 x 120 mm / 2 x 140 mm (3 x 120 mm included)

Top Fan: 3 x 120 mm / 2 x 140 mm

Rear Fan: 1 x 120 mm

Front Radiator: up to 360 / up to 280

Top Radiator: up to 360

Rear Radiator: 120

GPU Length: 400 mm

CPU Cooler Height: 162 mm

Cable Management: 36 mm

PSU Length: 220 mm / 280 mm (depends on HDD Cage location)

Front panel fan thickness: 30 mm for fan or radiator

Front 360 Radiator: 122 x 398 x 65 mm

Front 280 Radiator: 142 x 330 mm

Top 360 Radiator: 122 x 398 mm with 42 mm RAM height clearance

Net Weight: 6.7 kg

Scope of delivery:

• Eclipse G360A Chassi

• 2x SSD bracket

• 2x HDD bracket

• 3x 120 mm D-RGB fan

• 6x Zip ties

• 22x MB/SSD Screw

• 4x PSU Screw

• 1x Stand-off

• 2x HDD locking screw
