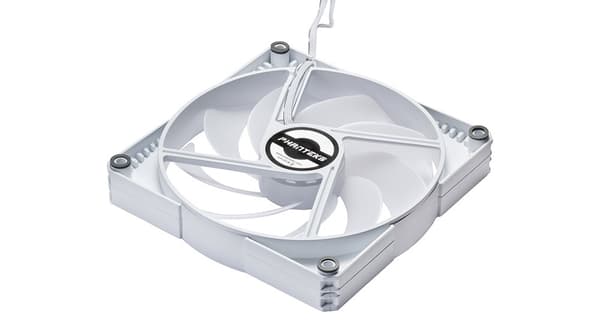

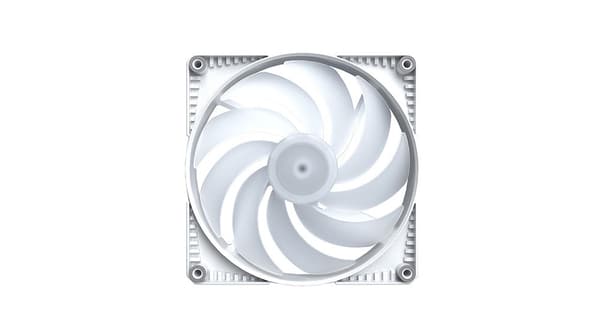

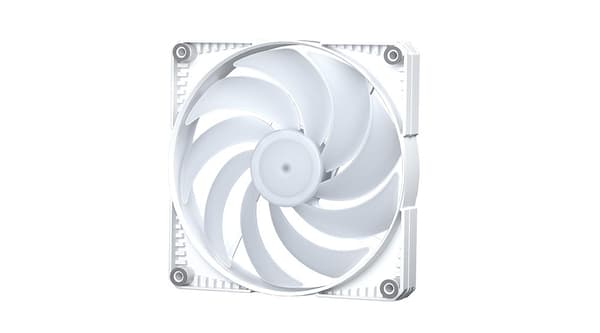

The SK PWM fans from Phanteks provide a high airflow cooling solution with the nine-bladed design. The SK fans are known from the award-winning Eclipse Series chassis such as the P400A and its cooling performance. The built-in PWM capabilities help precisely control the speed to offer higher airflow or a quiet cooling solution when needed. The included rubber dampeners and the unique rigid frame design further reduce vibrations and noise.

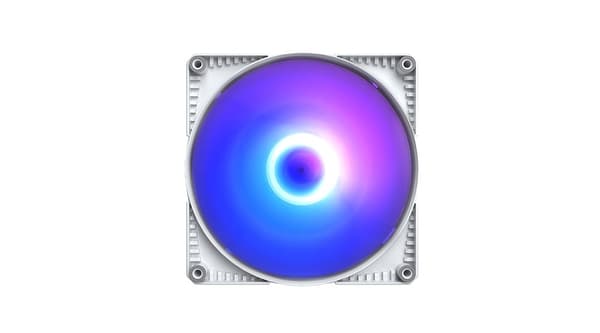

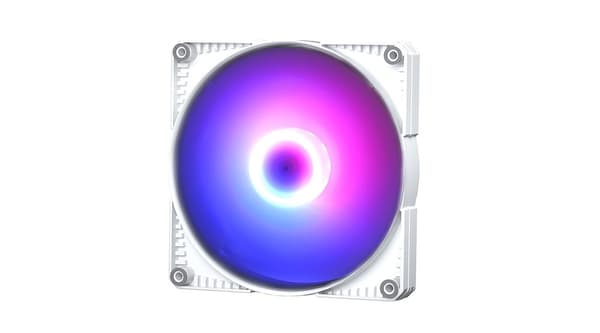

Now also available in full white D-RGB version.

Fan Dimension (WxHxD): 140 mm x 140 mm x 25 mm

Bearing Type: Rifle bearing

Blade Geometry: Nine Blades Design (matte white)

Rated Voltage: DC 12V

Operating Voltage Range: 4 ~13V

PWM: Yes

Rated Current (Ampere): 100% 0.15A ±0.02

Locked Curent: Brake Protection

Power Consumption: 2.64W +10% Max

Speed: 500 ~1500 +5 /-10% RPM

Max. Airflow: 84,5 CFM (ft4/min)

Max. Air Pressure: 1.23 mm H2 O

Noise Level: 36 dB(A)

Fan Connector: 4 Pin PWM

Cable Length: 550 mm

D-RGB Connector: 3 Pin D-RGB Daisy-Chain Connectors

D-RGB Cable Length: 300+100 mm

LED Number: 12 (D-RGB)

LED Rated Voltage: DC 5V (+5V/D/GND)

LED Rated Current: Max 0.36A ±0.04

MTBF: 40.000 / hrs

Net Weight: 158.8 g
