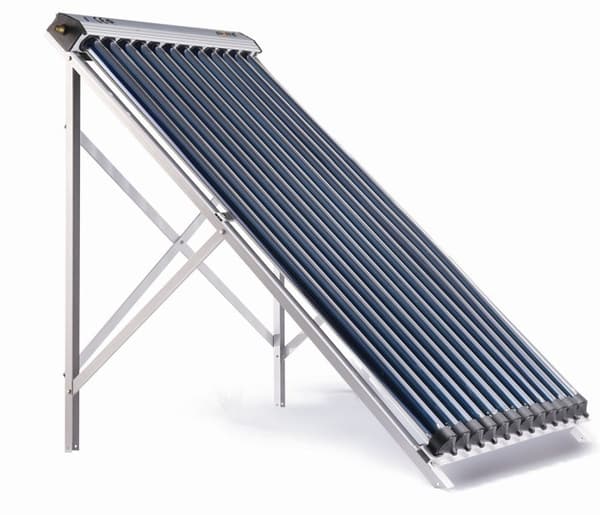

About SIDITE SC-HP-24 24 heat pipe solar heat collector: smart collector that carries the sun's heating rays on right into your wallet. As we know, it costs money to heat water using oil burning or electricity. Then much better to use nature's own power source to generate the energy you need to heat your hot water both for your household and for example your pool. Yes, these are just some of the uses, the industry's need for hot water is another.

Characteristics

1. Double glass vacuum tubes: Reliable, efficient, high temperature resistant and frost protected.

2. There is no water in the vacuum hose, the system still works even if the hose is broken.

3. Red copper heating tube, unidirectional transmission, fast heat transfer, less heat loss, low temperature resistance, and it can be used in -35°C.

4. Aluminum alloy distributor and bracket, corrosion resistance, easy to install. It is suitable for both flat and sloping roofs.

5. High temperature resistant polyurethane foam / stone wool as insulation = high density and good thermal insulation properties.

6. High quality copper manifold, its test pressure is 1 MPa.

7. Approved Solar Keymark certification.

8. Ecological and economic, Improves the environment and

save your fuel cost.

Working principle

The vacuum tubes absorb the solar radiation which is transferred to heat, the heat passes to the conduction fin through the tube wall and is then transferred to the heat pipe through the fin.

After the heat pipe absorbs heat, the heat is transferred to the heat pipe end causing evaporation (condensation) which is then circulated due to gravity, heating the water (medium) in the manifold.

Preferences

Model: SIDITE SC-HP-24

Vacuum tube

Number of pipes (pcs): 24

Diameter/Length (mm): ?58 / 1800

Material pipe: High borosilicate glass 3.3

Insulation material (mm): Polyurethane Foam / RockWool /40

Pressure resistant measured (mpa): 0.6

Total area of the pipes (m2): 2.4

Power (w) 1000W/m2: 1401

Net weight (kg): 79

Frame

3 feet (left-center-right)

Angle 45°

Collector size

Full width (mm) A 1945

Width of the collector itself B (mm) 1850

Width at bottom C (mm): 1785

Dimensions C2 (mm) 885.5

Total height of pipe and collector D (mm) 1900

From back edge to toe E (mm) D 1240

Height of the equipment F (mm): 1470

Article number: 094614
