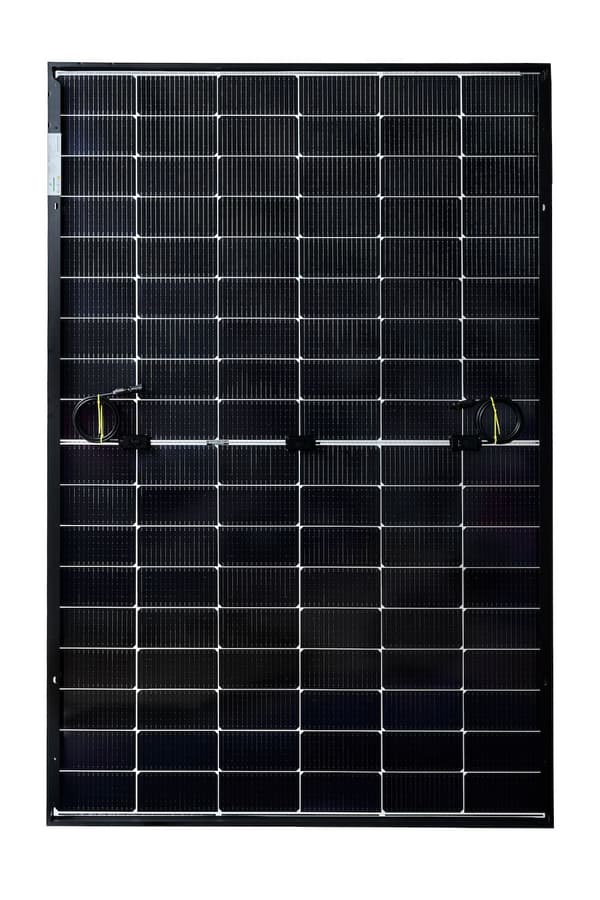

This is a solar plant with new technology solar panels AUSTA AU440-27V-MHDB which is the fruit of the latest findings of research in solar technology. Kitet's solar panels have the new SMBB (Super Multi Busbar) technology which means: improvement in power generation efficiency through better light capture and current collection. This has meant that these panels have an increased power generation of between 5 - 25% in relation to conventional panels.

AUSTA AU440-27V-MHDB also has improved weather resistance and effectively resists harsh environments like those we can have in the Nordics. AUSTA AU440-27V-MHDB is one of the most durable panels on the market and is certified to withstand: wind load of 2400 Pascal and snow load of 5400 Pascal. The panels are tested by TUV.

We have combined these distinguished panels with a Growatt Hybrid Inverter 25 kW model 25KTL3-XH i which is the very heart and brain of the system and it will ensure that you can sleep safely at night. With the Growatt Shine WiFi-X Wi-Fi transmitter, you can monitor how your installation behaves via an app on your mobile. Growatt Shine WiFi-X Wi-Fi transmitter sold separately. You can expect this plant in full operation to provide between 25,000 – 25,500 kWh

With this plant in operation, you can soon make money by stabilizing the Swedish power grid. Then you need to supplement with batteries and we sell these separately.

This is included
Inverter: 1 Growatt Hybrid inverter 25 kW model 25KTL3-XH

Solar panels: 57 AUSTA AU440-27V-MHDB which together are expected to generate 25.08 kW, size 1722 x 1134 x 30 mm and occupy a total area of 111.15 m2

Mounting and connection materials are difficult to specify exactly what is included as different projects have their own conditions, but here is an example for a 25 kW installation on a roof with concrete or brick tiles:
ISOTEC rails 60 pieces

ISOTEC joint fittings 50 pieces

ISOTEC intermediate mounts 110 pieces

ISOTEC end fittings 25 pieces

ISOTEC hooks (brick roofs) or equivalent for metal or cardboard roofs 122 pieces

ISOTEC screw for intermediate fittings: 110 pieces

MC4 connector female 6 pcs

MC4 male connector: 6 pcs

Photovoltaic cable Red 80 meters

Photovoltaic cable Black 80 meters

Other screws for attaching mounting accessories to the ceiling are not included!

Guarantees

5-year product warranty Growatt inverter, for an additional SEK 4,500 this can be extended to 10 years

Solar panels: AUSTA AU440-27V-MHDB 440W: 15-year product warranty, 30-year linear power warranty

Mounting material: 12-year ISOTEC product warranty

Article number: 107964

Note: assembly NOT included! (Assembly, if you think it seems too difficult to assemble yourself, we can arrange for our own certified technicians to help you assemble everything on site. Then you need a quote for work. Remember that you must apply for grants for installation of solar energy installation, in that case both work and materials must be specified on the same invoice)
