Hybrid package GROWATT/ Austa/ ISOTECH: 20.64 kW, complete (excluding batteries)

The solar panels

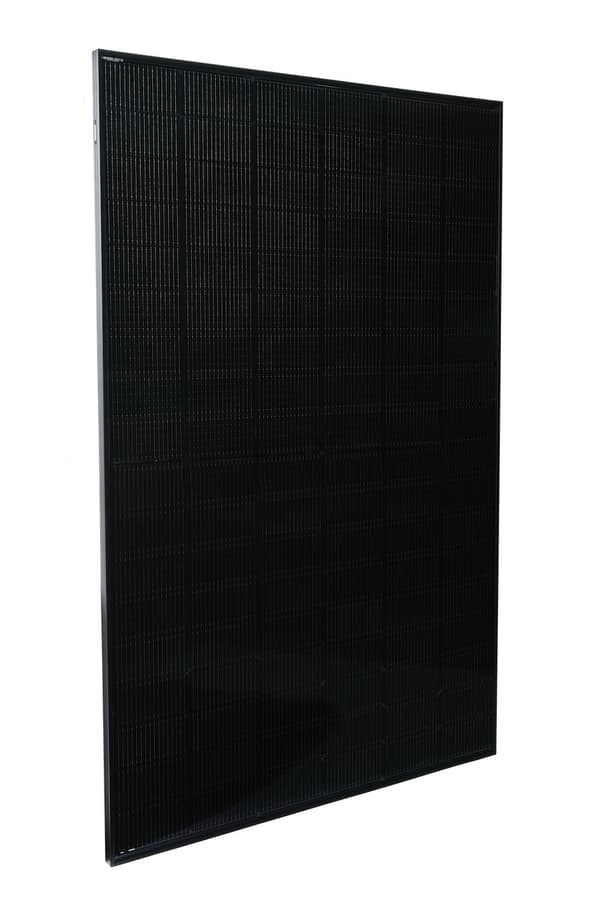

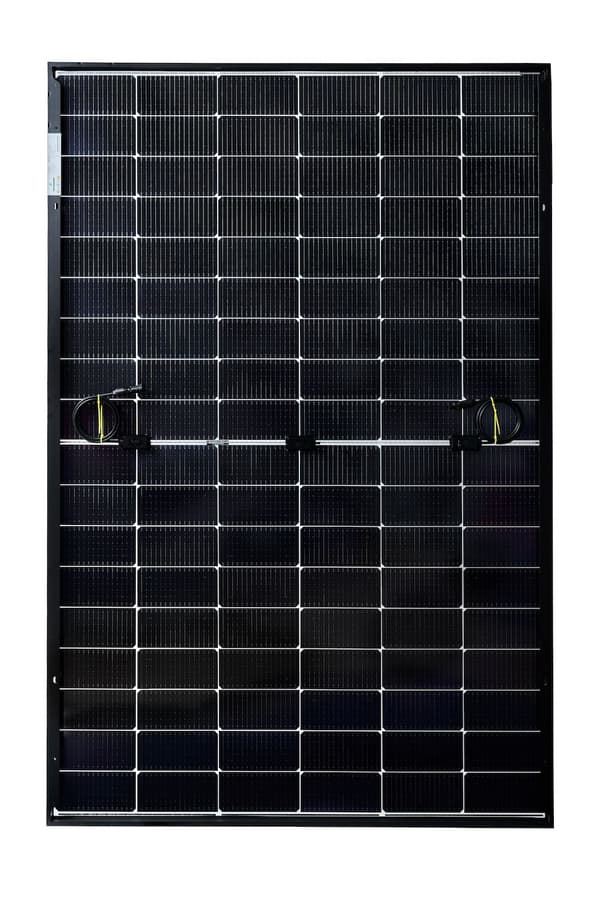

This plant has been equipped with the latest in solar technology as the kit's solar panels have AUSTA AU440-27V-MHDB which has the new SMBB (Super Multi Busbar) technology which means: improving power generation efficiency through better light capture and current collection. This has meant that these panels have an increased power generation of between 5 - 25% in relation to conventional panels.

They also have improved weather resistance and effectively withstand tough environments like those we can have in the Nordics. AUSTA AU440-27V-MHDB is one of the most durable panels on the market and is certified to withstand: wind load of 2400 Pascal and snow load of 5400 Pascal. The panels are tested by TUV.

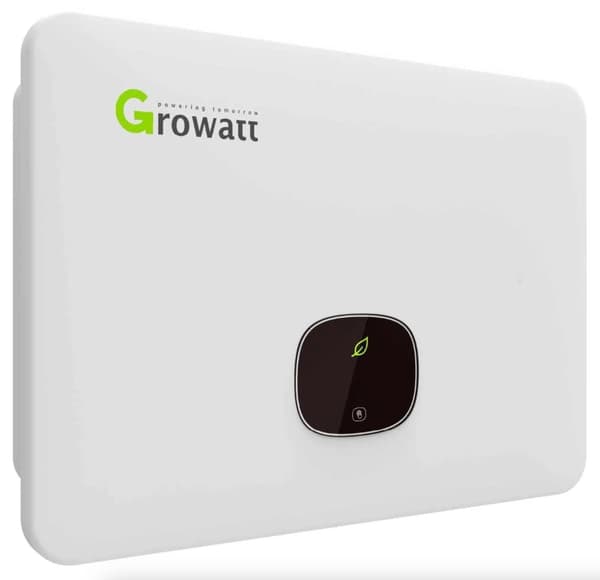

We have assembled these distinguished panels with a Growatt Hybrid Inverter 20 kW model 20KTL3-XH i which is the very heart and brain of the system and will ensure that you can sleep safely at night.

You can expect this plant in full operation to provide between 20,000 – 20,500 kWh

With this plant in operation, you can soon make money by stabilizing the Swedish power grid. Then you need to supplement with batteries and we sell these separately.

This is included
Inverter: 1 Growatt Hybrid inverter 20 kW model 20KTL3-XH

Solar panels: 46 AUSTA AU440-27V-MHDB 440 W, capable of generating 20.24 kW, dimensions of panels 1722 x 1134 x 30 mm occupying a total area of 89.7 m

Assembly and connection materials are difficult to specify what is included is difficult as different projects have their own conditions, but here is an example for a 20 kW installation on a roof with concrete or brick boilers:

Mounting accessories

How long is a string, yes specifying what is included more is difficult as different projects have their conditions but here is an example for this 20 kW plant:

ISOTEC rails 50 pieces

ISOTEC joint fittings 40 pieces

ISOTEC intermediate fasteners 90 pieces

ISOTEC end fittings 22 pieces

ISOTEC hooks (brick roofs) or equivalent for metal or cardboard roofs 100 pieces

MC4 connector female 6 pcs

MC4 male connector: 6 pcs

Photovoltaic cable Red 60 meters

Photovoltaic cable Black 60 meters

Other 80 screw for intermediate fittings

Other screws for attaching mounting accessories to the ceiling are not included!

Guarantees

5 year product warranty Growatt inverter, 10 years is optional for an extra fee of SEK 4500

Solar panels: AUSTA AU440-27V-MHDB: 15-year product warranty, 30-year linear power warranty,

Mounting material: 12-year ISOTEC product warranty

Article number: 107954

Note: assembly NOT included! (Assembly and if you think it seems too difficult to assemble yourself, we can arrange for our own certified technicians to help you assemble everything on site. Then you need a quote for work. Remember that you must apply for grants for installation of solar energy installation, in that case both work and materials must be specified on the same invoice)
