Complete wind turbine Off-grid that makes you less dependent on external power. Assembled and ready, this system provides a 24-hour average energy of: 12 kWh when it is windy, which covers quite a large consumption. If it's not windy, four loops with four 12 volt 200 Ah batteries connected in parallel will see that you manage for a good while anyway.

This is included
The whole system consists of a wind turbine, a tower, a controller and an inverter (pure sine wave inverter) and cables for all of this. Batteries sold separately

Suggestions
Of course you can add some solar panels (NOTE not included!) to be a hybrid wind and solar system! With it, you can capture the power of both the wind and the sun and make yourself even more independent.
The system fits in well
Villa and holiday home, Power station, field operation of various machines and lights as well as buildings to have auxiliary power for machines, lights and tools
Additional energy
It is also entirely possible to use the wind turbine as backup power. This provides power to, for example, air conditioning, heat pump, refrigerator, water pump, washing machine and so on

Specifications

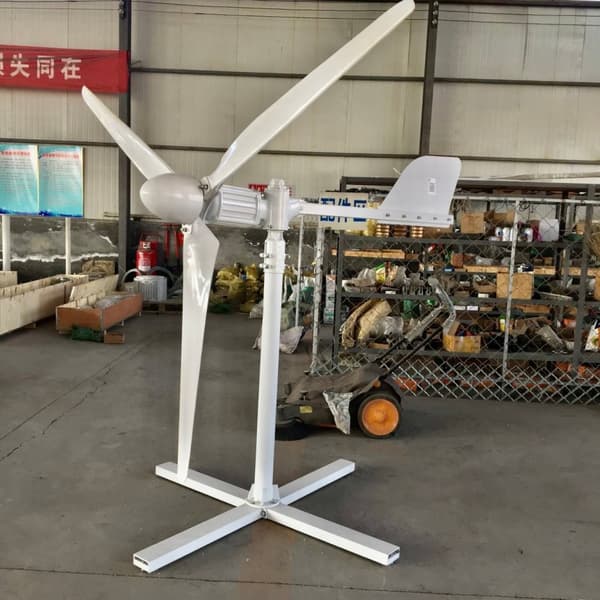

Wind turbine generator Article SC 1 kW, 1000W
Model: WT 1000
Rated power 1000 W
Starting wind speed 2.5 m/s
Working wind speed 3- 25 m/s
Nominal wind speed 9 m/s
Safety wind speed 35 m/s
Nominal DC voltage 24V/
Nominal speed 500 r/m
Rotor diameter 2900 mm
Nominal AC output voltage 220V/ 50HZ
Protection Electromagnetic torque control and electric brake
Type 3-phase permanent magnetism
synchronization generator
Blade material Extra strong fiberglass
Packaging material Plywood box and foam material
Package size 1660 x 380 x 420 mm
Nominal power 1000W
Number of sheets 3
Blade material: FRP-extra reinforced fiberglass
Wind rotor diameter (m) 2.9
Working voltage (V) DC48V – DC220V
Generator type PM, three-phase, AC
Starting wind speed (m/s) 3
Speed control method: Electromagnetic torque control and electric brake
Working wind speed (m/s) 3.0 – 25 m/s
Stopping method Electrom: Electromagnetic torque control and electric brake
Passed measured wind speed: 40 m/s
Weight of wind turbine: 56 kg
Turbine tower, pole size: 6 m
Turbine tower, pole weight 72 kg
Nominal wind speed (m/s) 8
Starting torque (n/m): 1.5
Max power (w) 1500

Control unit
model: WC 1kw/24v wind charge controller. Nominal battery voltage: 24V wind turbine Maximum input: 40A Discharge voltage (factory setting): 28V Discharge current (factory setting): 50A

Connection method: 4 batteries in series
Off-Grid Inverter
Off-Grid inverter pure sine wave inverter Model: SI3KW
DC input: 48V
AC output: 110/120/220/230/240V output; with built-in mains charger
Protection against overload, short circuit,
Protection against back protectors, dischargers, etc.

Cable tower
Guy cable tower: 6 m

Cable
1) 8 pcs 16 mm2 x 35 cm battery cable connect 4 pcs 16 mm2 x 1m battery cable
2) 10mm2 cable x 100M

Article number 104544 Wind turbine 1 kW ready-to-assemble kit for home use
