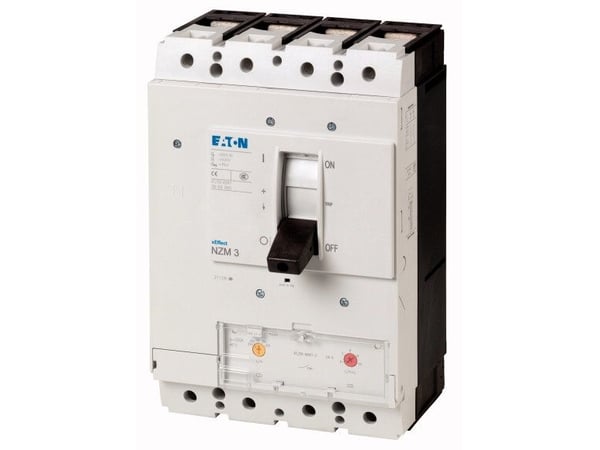

Eaton NZMN3-4-A400, 85000 A, IP20 | SKU: 109696 | Brand: Eaton Corporation | EAN: 4015081092826<br>

color

weight

Virranhallinta

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nimellisvirta

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nimellisjännite

Ominaisuudet

The maximum fault current that the device can safely interrupt without sustaining permanent damage, measured in A.

Katkaisukyky

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Napojen määrä

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

International Protection (IP)-koodi

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Päästöaste

The colour e.g. red, blue, green, black, white.

Tuotteen väri

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifiointi

Ympäristöolosuhteet

The minimum and maximum temperatures at which the product can be safely operated.

Käyttölämpötila (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Varastointilämpötila

Paino ja mitat

The measurement or extent of something from side to side.

Tuotteen leveys

The distance from the front to the back of something.

Tuotteen syvyys

Tuotteen korkeus

Tuotteen paino ilman pakkausta (Nettopaino). Jos mahdollista, nettopaino ilmaistaan vakiovarusteineet ja tarvikkeet mukaan laskettuna. Huomaa, että joskus valmistaja antaa kaupallisen tulkinnan tuotteen painosta, jättämällä pois  lisävarusteiden ja / tai tarvikkeiden painon.

Eaton NZMN3-4-A400, 85000 A, IP20

1 543,00 €

1 543,00 €

Tuotteen kuvaus

Eaton NZMN3-4-A400, 85000 A, IP20

1 543,00 €

1 543,00 €

Virranhallinta
Nimellisvirta	400 A
Nimellisjännite	690 V

Ominaisuudet
Katkaisukyky	85000 A
Napojen määrä	4
International Protection (IP)-koodi	IP20
Päästöaste	3
Tuotteen väri	Musta, Valkoinen
Sertifiointi	IEC/EN 60947

Ympäristöolosuhteet
Käyttölämpötila (T-T)	-25 - 70 °C
Varastointilämpötila	-40 - 70 °C

Paino ja mitat
Tuotteen leveys	185 mm
Tuotteen syvyys	166 mm
Tuotteen korkeus	275 mm
Paino	8,4 kg
