Eaton PKZM4-25, Moottorin suojakatkaisin, 150000 A, IP20 | SKU: 222352 | Brand: Eaton | EAN: 4015082223526<br>

Virranhallinta

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nimellisvirta

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nimellisjännite

Ominaisuudet

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Johdonsuojakatkaisijatyyppi

The maximum fault current that the device can safely interrupt without sustaining permanent damage, measured in A.

Katkaisukyky

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Napojen määrä

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

International Protection (IP)-koodi

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Päästöaste

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifiointi

Ympäristöolosuhteet

The minimum and maximum temperatures at which the product can be safely operated.

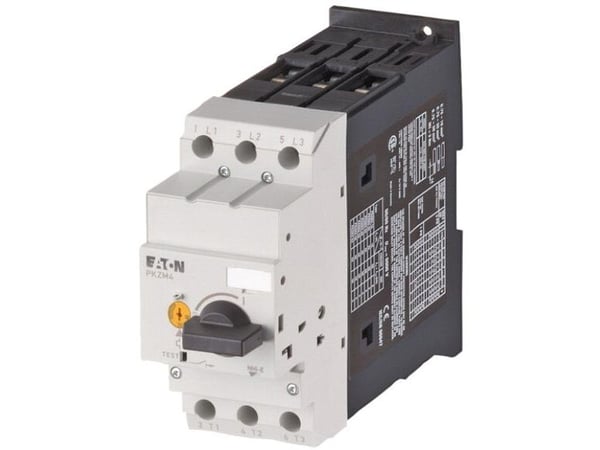

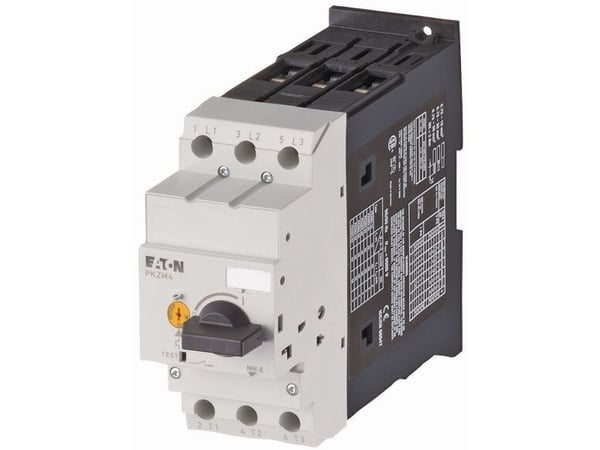

Eaton PKZM4-25, Moottorin suojakatkaisin, 150000 A, IP20

234,26 €

234,26 €

Tuotteen kuvaus

Eaton PKZM4-25, Moottorin suojakatkaisin, 150000 A, IP20

234,26 €

234,26 €

Virranhallinta
Nimellisvirta	25 A
Nimellisjännite	690 V

Ominaisuudet
Johdonsuojakatkaisijatyyppi	Moottorin suojakatkaisin
Katkaisukyky	150000 A
Napojen määrä	3
International Protection (IP)-koodi	IP20
Päästöaste	3
Sertifiointi	IEC/EN 60947, VDE 0660,UL, CSA

Ympäristöolosuhteet
Käyttölämpötila (T-T)	-25 - 55 °C
Varastointilämpötila	-40 - 80 °C

Paino ja mitat
Tuotteen leveys	55 mm
Tuotteen syvyys	160 mm
Tuotteen korkeus	140 mm

Eaton PKZM4-25, Moottorin suojakatkaisin, 150000 A, IP20
