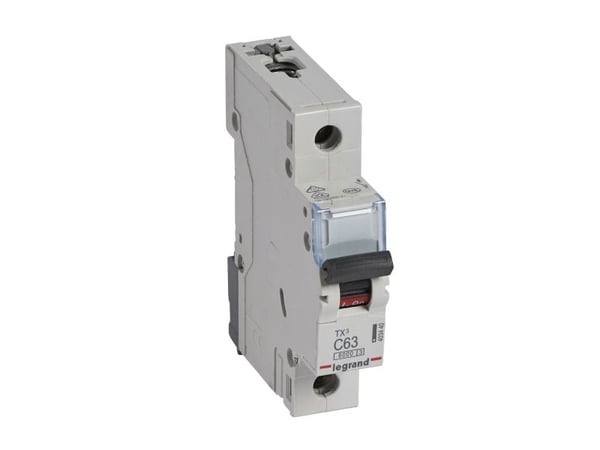

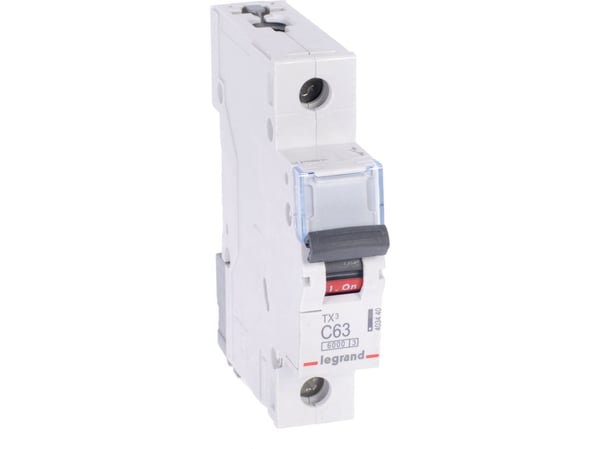

Legrand-kytkin S 301 1P C 63A 6000A - 403440 | SKU: 403440 | Brand: Legrand | EAN: 3414970388469<br>

Virranhallinta

The voltage (V) which is required to power the product.

Tulojännite

The frequency (Hz) which is required to power the product.

Syötteen taajuus

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nimellisvirta

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nimellisjännite

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrinen lujuus

Ominaisuudet

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Johdonsuojakatkaisijatyyppi

Malli

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Napojen määrä

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

International Protection (IP)-koodi

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Päästöaste

The classification of the device's ability to limit the let-through energy during a short-circuit fault, typically categorized by levels such as 1, 2, or 3.

Energianrajoitusluokka

The way in which the product is being installed.

Asennustyyppi

Ympäristöolosuhteet

The minimum and maximum temperatures at which the product can be safely stored.

Varastointilämpötila

Paino ja mitat

The measurement or extent of something from side to side.

Tuotteen leveys

The distance from the front to the back of something.

Tuotteen syvyys

Tuotteen korkeus

Tekniset tiedot

Specifies the harmful or restricted substances that are not present in the product (e.g. Acetone, Alcohol, or Aluminium).

Legrand-kytkin S 301 1P C 63A 6000A - 403440

23,00 €

23,00 €

Tuotteen kuvaus

Legrand-kytkin S 301 1P C 63A 6000A - 403440

23,00 €

23,00 €

Virranhallinta
Tulojännite	240 - 415 V
Syötteen taajuus	50 - 60 Hz
Nimellisvirta	63 A
Nimellisjännite	230 V
Dielektrinen lujuus	4000 V

Ominaisuudet
Johdonsuojakatkaisijatyyppi	Pienoiskatkaisija
Malli	Tyyppi C
Napojen määrä	1
International Protection (IP)-koodi	IP20
Päästöaste	2
Energianrajoitusluokka	3
Asennustyyppi	DIN-kisko

Ympäristöolosuhteet
Varastointilämpötila	-40 - 70 °C

Paino ja mitat
Tuotteen leveys	17,8 mm
Tuotteen syvyys	77,8 mm
Tuotteen korkeus	88 mm

Tekniset tiedot
Ei sisällä	Halogeeni
