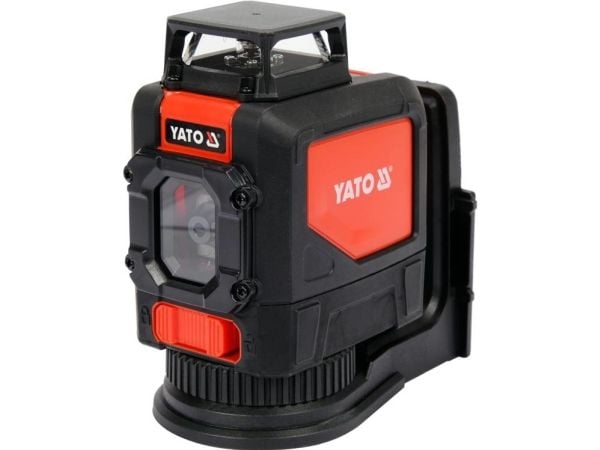

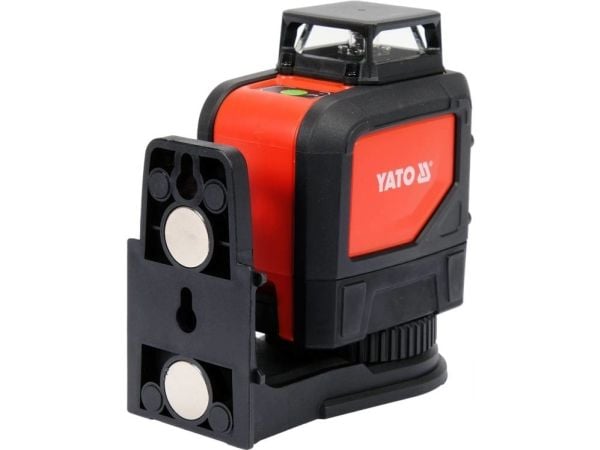

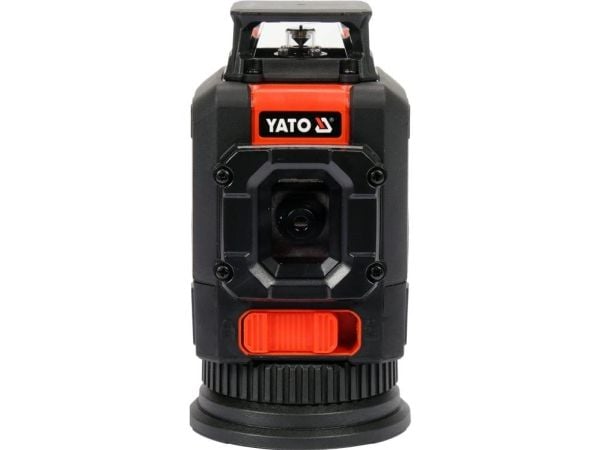

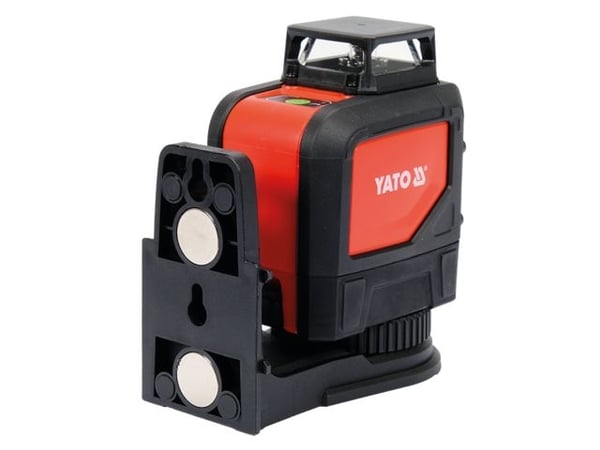

YATO LASER 5 linjer grön | SKU: YT-30435 | Brand: YATO | EAN: 5906083075735<br>

color

weight

Ominaisuudet

The accuracy of a levelling device, which is used to align and level over long distances using a series of lasers which it projects.

Levelling accuracy (Â±)

Indicates whether the device automatically adjusts the laser beam to a perfectly horizontal or vertical position.

Vaakasuoraistuu itse

The number of degrees (usually within ± 3-5°) which a levelling device (laser) can level itself.

Self-levelling range (Â±)

The total number of laser beams projected by the device to create reference lines.

Laserviivojen lukumäärä

The time required for the device to automatically reach a level position, measured in s.

Vaaitusaika

The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.

Aallonpituus

Specifies the orientation or projection angle of the emitted light (e.g. Horizontal/Vertical).

Valojen suuntaus

The specific wavelength or visible hue of the emitted light (e.g. Green or Red).

Lasersäteen väri

Specifies the safety category of the laser beam based on its potential to cause eye or skin injury (e.g., Class 1, Class 2, or Class 3R).

Laserin luokka

The wavelength and power output of the light source, often specified as a range or single value (e.g. 532 nm (< 5 mW)).

Laser diodi

Suunnittelu

Malli

The colour e.g. red, blue, green, black, white.

Tuotteen väri

The diameter of the mounting screw hole used to attach the device to a support stand, measured in ".

Jalustan kierre

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

International Protection (IP)-koodi

Akku

What is providing power for the product e.g. mains electricity.

Voimanlähde

The length of time which the product can be operated for.

Toiminta-aika

Akkutyyppi

Akun jännite

The number of batteries that can be used with the product.

Tuettu paristojen lukumäärä

Ympäristöolosuhteet

The minimum and maximum temperatures at which the product can be safely operated.

Käyttölämpötila (T-T)

Paino ja mitat

Tuotteen paino ilman pakkausta (Nettopaino). Jos mahdollista, nettopaino ilmaistaan vakiovarusteineet ja tarvikkeet mukaan laskettuna. Huomaa, että joskus valmistaja antaa kaupallisen tulkinnan tuotteen painosta, jättämällä pois  lisävarusteiden ja / tai tarvikkeiden painon.

Paino

Pakkauksen sisältö

Indicates whether the necessary hardware for installation, such as a mounting bracket, is supplied with the product.

Kiinnitysteline sisältyy

Indicates whether a printed user manual is included in the package.

YATO LASER 5 linjer grön

98,00 €

98,00 €

Tuotteen kuvaus

YATO LASER 5 linjer grön

98,00 €

98,00 €

Ominaisuudet
Levelling accuracy (Â±)	0,3 mm/m
Vaakasuoraistuu itse	Kyllä
Self-levelling range (Â±)	4°
Laserviivojen lukumäärä	5
Vaaitusaika	3 s
Aallonpituus	530 nm
Valojen suuntaus	Vaaka/Pysty
Lasersäteen väri	Vihreä
Laserin luokka	2
Laser diodi	510-530 nm (≤ 1mW)

Suunnittelu
Malli	Linjalaser
Tuotteen väri	Musta, Punainen
Jalustan kierre	1/4"
International Protection (IP)-koodi	IP54

Akku
Voimanlähde	Akku
Toiminta-aika	8 h
Akkutyyppi	AA
Akun jännite	1,5 V
Tuettu paristojen lukumäärä	4

Ympäristöolosuhteet
Käyttölämpötila (T-T)	-10 - 50 °C

Paino ja mitat
Paino	430 g

Pakkauksen sisältö
Kiinnitysteline sisältyy	Kyllä
Käyttöopas	Kyllä
