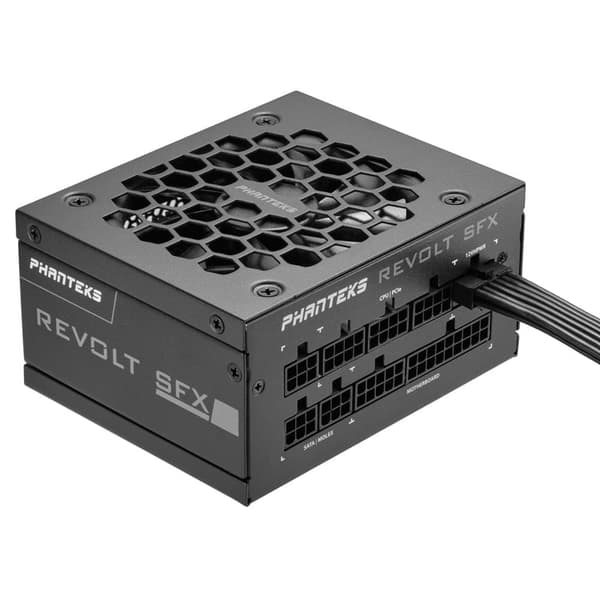

The Phanteks Revolt SFX 850W is ready for the most powerful next-gen hardware in a super-compact SFX footprint. It was build according to the new Intel ATX 3.0 platform specifications and comes with native PCIe Gen5 12VHPWR support out of the box. The high efficiency, 80 PLUS Platinum certification guarantees a 92% efficiency at 50% system load.The Revolt SFX 850W power supply comes with customized cables that are tailored for small form factor chassis, especially when paired with the Phanteks Evolv Shift XT chassis. A built-in silent 92mm Fluid Dynamic Bearing (FDB) fan with intelligent thermal control, optimizes noise and cooling performance. It also features a 0 RPM mode while under 30% load for ultimate silence.

Model

PH-P850PSF_02

Brand

Phanteks

Type

Power Supply DC output 850W 80+ Platinum

Color

Black

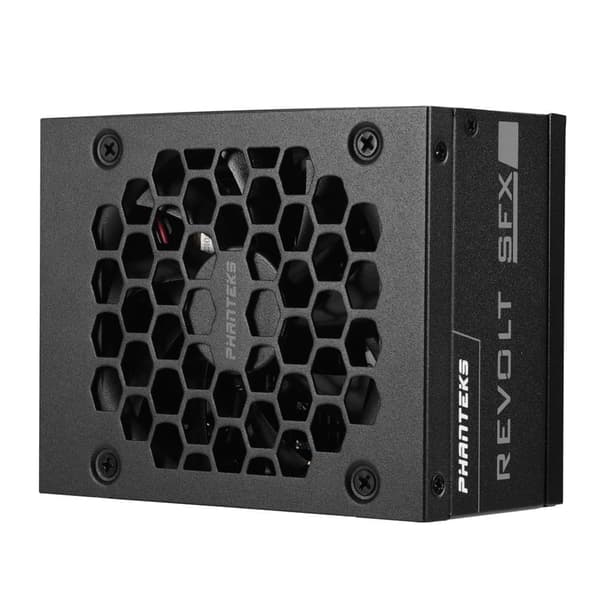

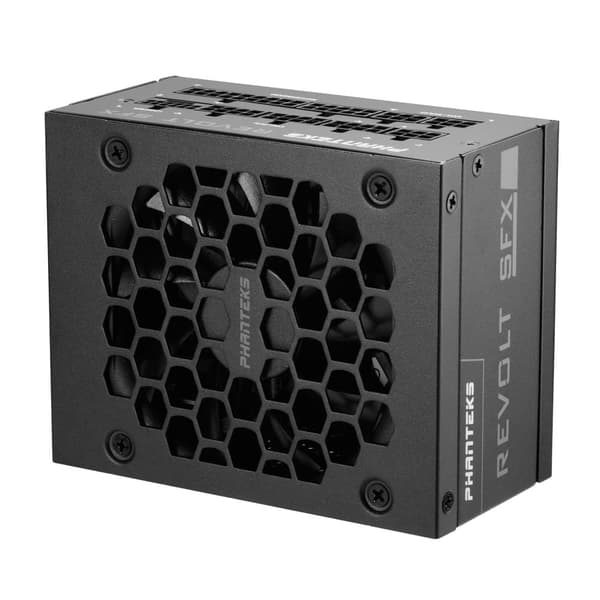

Cooling Fan

92mm Fluid Dynamic Bearing (FDB) Fan

Output Protection

OPP (Overpower Protection)

OVP (Over Voltage Protection)

UVP (Under voltage protection

SCP (Short Circuit Protection)

OCP (Over Current Protection)

OTP (Over Temperature Protection)

No-Load Protection

Reset Protection

Back Plate

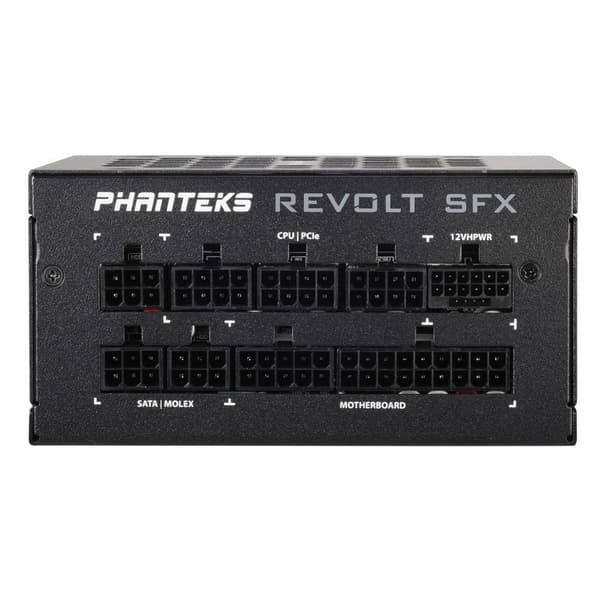

PSU Output Connector

Fully Modular

1x 18+10pin => MB 24pin

3x 8pin => CPU 8pin/PCI-E 8pin

3x 6pin => SATA/Molex

1x 16pin => PCI-E 16pin

Output Voltage

12V

5V

3.3V

-12V

5VSB

Maximum Current

70.8 A

20A

20A

0.3A

3A

Max Capacity

850W

100W

3.6W

15W

DC Output

850W

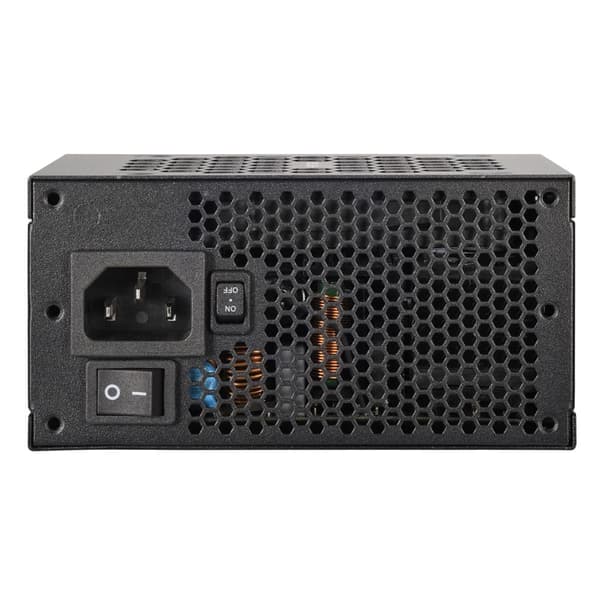

AC Input

100-240Vac/12A- 6A, 50-60Hz

16-Pin PCI-e Gen5 Capacity

600W

Operating Temp.

0 to 40℃

Operating Humidity

To 90% relative humidity (non-condensing)

Storage Temperature

-40 to 70℃

Storage Humidity

To 95% relative humidity (non-condensing)

MTBF

>100,000 hrs

PSU Dimension (LxWxH)

125 mm x 100 mm x 63.5 mm

Net Weight

1.10 kg

Scope of Delivery

1x PH-P850PSF_02 80+ Platinum fully modular Power Supply

1x Power cord

1x SFX to ATX bracket

Cable:

1x 18Pin+10Pin MB 24P (310mm)

1x 8pin CPU 4+4P (420mm)

1x 8pin PCI-E 6+2P (250mm)

1x 8pin PCI-E 6+2P/6+2P (250mm SPLITTER)

1x 16pin PCI-E Gen 5.0 (250mm)

1x 6pin 2SATA 90° (370mm-250/120mm)

1x 6pin 4SATA 90° (550mm-250/100/100/100mm)

1x 6pin 3SATA 90° + 1Molex 180° (550mm-250/100/100/100mm)

Accessory:

1x User’s manual

1x Installation guide

1x PSU Bag

1x Cable Bag

1x Zip tie bag

1x Screw Pack

1x Velcro Pack
